🌱Sybil: data feeds

Pull based oracle guide

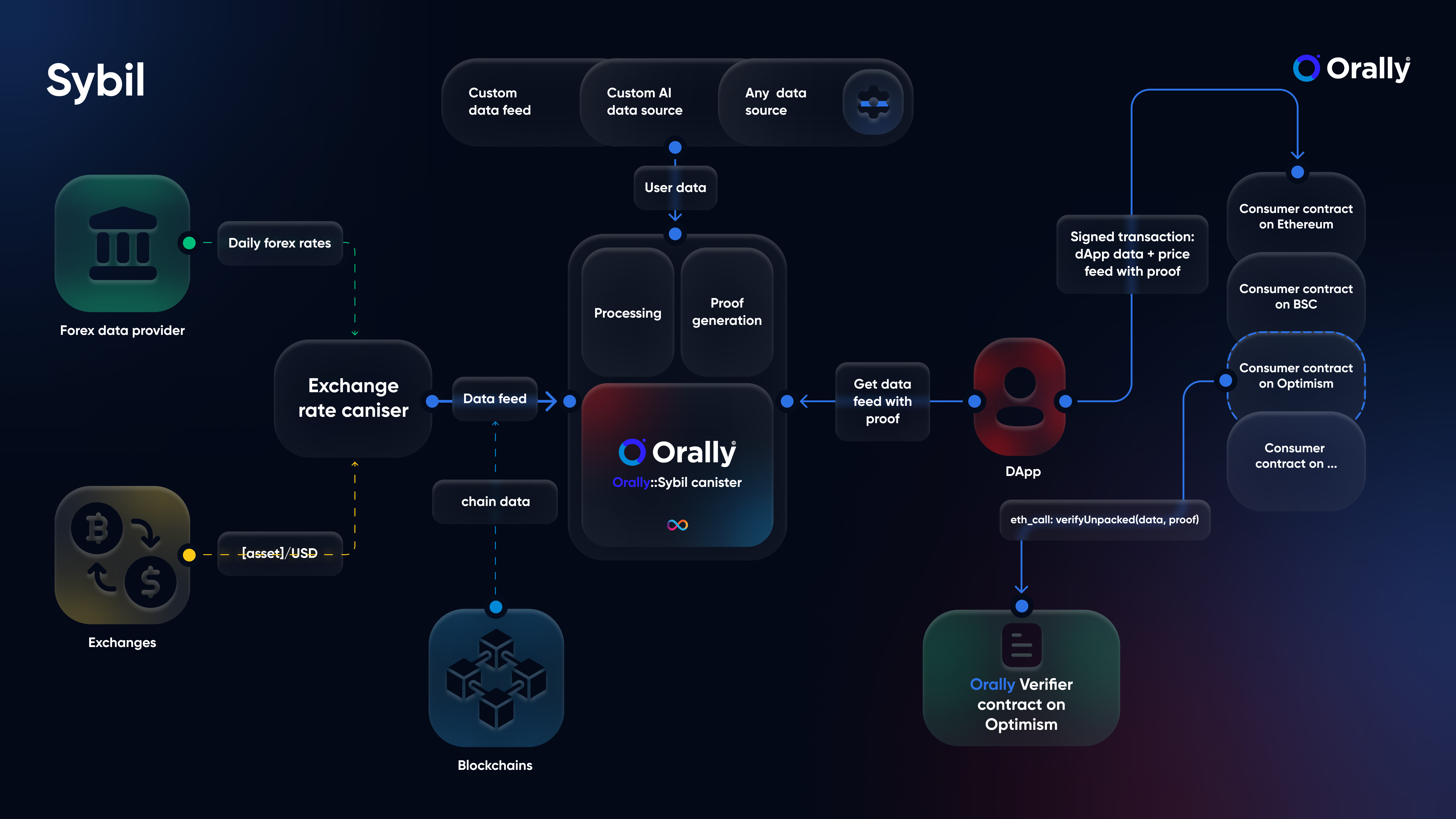

Sybil Architecture

This step-by-step guide will help you understand how to effectively utilize data feeds from the Sybil module. This module is a data fetcher that can be integrated as a pull-based oracle. Additionally, it can be used in conjunction with the Pythia automation module for push-based implementations.

Step 1: API Key Setup

1. Visit the Sybil API Key Portal: Navigate to Sybil API Key Management.

2. Top Up Wallet and Generate API Key: Follow the portal instructions to top up your wallet and generate an API key for enhanced access. Optionally, you can whitelist your app domain to streamline the process.

3. Dynamic Link Calculation: Utilize the dynamic link calculation feature for custom data requests.

Step 2: Fetch Data from Sybil

• Construct Your Data Request: Define the endpoint to fetch the latest data with proof. Example request format:

  https://tysiw-qaaaa-aaaak-qcikq-cai.icp0.io/get_xrc_data_with_proof?id=BTC/ETH&bytes=true&cache_ttl=1800&api_key={api_key}

• Parameters Documentation: Detailed documentation for each method parameter (get_xrc_data_with_proof, get_dxr_data_with_proof, read_logs_with_proof, read_contract_with_proof).

get_xrc_data_with_proof

Dynamically fetch requested price feed from exchanges (can calculate routing feeds, like BTC/ICP or WIF/ETH)

id	Price feed id (BTC/USD, BTC/ETH, ...)
api_key (optional)	Your API key
bytes (true / false - optional)	Respond in bytes to pass it easily on-chain and verify. Default is false
cache_ttl (optional)	Cache response for exactly this data feed request to optimize usage. Default is 600 (10 mins)

get_dxr_data

Dynamically fetch price feed from specified DEX liquidity pool.

get_dxr_data / get_dxr_data_with_proof

api_key (optional)	Your API key
bytes (true / false - optional)	Respond in bytes to pass it easily on-chain and verify. Default is false
cache_ttl (optional)	Cache response for exactly this data feed request to optimize usage. Default is 600 (10 mins)
chain_id	The chain from where reading the contract should happen
block_numbers	Array of block numbers from which heights data should be aggregated
pool_address	Address of DEX pool
dex_type	Type of DEX (e.g. UniswapV2), which determines the ABI to use for interacting with the pool
reverse_pair (optional)	Boolean indicating whether to reverse the pair for price calculation (e.g., DAI/MKR vs. MKR/DAI).

read_contract_with_proof

Dynamically read the contract from the specified chain, block, and address and provide proof that it could be used on other chains.

id	Price feed id (BTC/USD, BTC/ETH, ...)
api_key (optional)	Your API key
bytes (true / false - optional)	Respond in bytes to pass it easily on-chain and verify. Default is false
cache_ttl (optional)	Cache response for exactly this data feed request to optimize usage. Default is 600 (10 mins)
chain_id	The chain from where reading the contract should happen
block_number (optional)	Block number from when it is going to read. By Default reads from the last block.
contract_address	Address of reading contract
function_signature	Function ABI (as function balanceOf(address account) external view returns (uint256))
method	Method name to call (as balanceOf)
params	Parameters to pass in call function (as (0x654DFF41D51c230FA400205A633101C5C1f1969C))

read_logs_with_proof

Dynamically read the logs from the specified chain and block range and provide proof that could be used on other chains.

id	Price feed id (BTC/USD, BTC/ETH, ...)
api_key (optional)	Your API key
bytes (true / false - optional)	Respond in bytes to pass it easily on-chain and verify. Default is false
cache_ttl (optional)	Cache response for exactly this data feed request to optimize usage. Default is 600 (10 mins)
chain_id	The chain from where reading the logs should happen
block_from	Block number from when it is going to read
block_to	Block number to it is going to read
addresses	Addresses which emitted logs (0xa533f744b179f2431f5395978e391107dc76e103)
topics0	Indexed logs topic (topics0=0xddf252ad1be2c89b69c2b068fc378daa952ba7f163c4a11628f55a4df523b3ef)

Step 3: Implement Data Fetching in Frontend

Use TypeScript and the Wagmi library to integrate Sybil data into your dApp:

import { useWriteContract } from 'wagmi';

const API_KEY = {MY_API_KEY};

const { writeContract } = useWriteContract();

// Case 1: Verify price feed data
const interactWithYourDappWithFeed = async () => {
  const dataBytes = fetch(`https://tysiw-qaaaa-aaaak-qcikq-cai.icp0.io/get_xrc_data_with_proof?id=BTC/ETH&bytes=true&cache_ttl=1800&api_key=${API_KEY}`);

  writeContract({
    address: {your contract address},
    abi: {abi of your contract},
    functionName: 'interact',
    args: [dataBytes],
    chainId: {chainId},
  });
}

Step 4: Verify Data in Smart Contracts

Utilize the Orally Solidity SDK to implement verification in your dApp's smart contracts:

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.20;

import "@orally-network/solidity-sdk/IOrallyVerifierOracle.sol";
import "@orally-network/solidity-sdk/OrallyStructs.sol";

contract YourDappContract {
    IOrallyVerifierOracle oracle;

    constructor(address orallyVerifierOracleAddress) {
        oracle = IOrallyVerifierOracle(orallyVerifierOracleAddress);
    }

    // price data from
    // https://tysiw-qaaaa-aaaak-qcikq-cai.icp0.io/get_xrc_data_with_proof?id=DOGE/SHIB&bytes=true&api_key={YOUR_API_KEY}
    function interact(
        bytes memory priceFeedData
    ) public view returns (OrallyStructs.PriceFeed memory) {
        // Verify the price feed data and get the price, decimals, and timestamp.
        OrallyStructs.PriceFeed priceFeed = oracle.verifyPriceFeed(priceFeedData);

        // priceFeed.price is the price of DOGE/SHIB
        // priceFeed.decimals is the number of decimals in the price
        // priceFeed.timestamp is the timestamp when price feed was aggregated

        return priceFeed;
    }

    // -- or --

    // with cache
    // https://tysiw-qaaaa-aaaak-qcikq-cai.icp0.io/get_xrc_data_with_proof?id=DOGE/SHIB&bytes=true&API_KEY={YOUR_API_KEY}
    function interact(
        bytes memory priceFeedData
    ) public returns (OrallyStructs.PriceFeed memory) {
        // Verify the price feed data and get the price, decimals, and timestamp.
        oracle.updatePriceFeed(priceFeedData);

        // Get the price feed data from the cache.
        OrallyStructs.PriceFeed priceFeed = oracle.getPriceFeed("DOGE/SHIB");

        // priceFeed.price is the price of DOGE/SHIB
        // priceFeed.decimals is the number of decimals in the price
        // priceFeed.timestamp is the timestamp when price feed was aggregated

        return priceFeed;
    }

    // -- or --

    // without API key
    // https://tysiw-qaaaa-aaaak-qcikq-cai.icp0.io/get_xrc_data_with_proof?id=DOGE/SHIB&bytes=true
    function interact(
        bytes memory priceFeedData
    ) public payable returns (OrallyStructs.PriceFeed memory) {
        // Get the update fee for the price feed data.
        uint256 fee = oracle.getUpdateFee(priceFeedData);
        // Verify the price feed data and get the price, decimals, and timestamp.
        OrallyStructs.PriceFeed priceFeed = oracle.verifyPriceFeedWithFee{ value: fee }(priceFeedData);
        // if this price feed will be needed for later usage you can use `updatePriceFeedWithFee` instead (+90k to gas) and access as `oracle.getPriceFeed("DOGE/SHIB")`

        // priceFeed.price is the price of DOGE/SHIB
        // priceFeed.decimals is the number of decimals in the price
        // priceFeed.timestamp is the timestamp when price feed was aggregated

        return priceFeed;
    }

    // -- or verifying chain data example --

    // chain data from
    // https://tysiw-qaaaa-aaaak-qcikq-cai.icp0.io/read_contract_with_proof?chain_id=42161&function_signature="function balanceOf(address account) external view returns (uint256)"&contract_addr=0xA533f744B179F2431f5395978e391107DC76e103&method=balanceOf&params=(0x654DFF41D51c230FA400205A633101C5C1f1969C)&bytes=true
    function getSideChainUserTokenBalance(
        bytes calldata chainData
    ) public view returns (uint256) {
        // Verify the chain data and get the balance of the user.
        (bytes memory dataBytes, bytes memory metaBytes) = oracle.verifyReadContractData(chainData);
        // `verifyReadContractDataWithFee` for paying fee in the same transaction instead of API key

        (uint256 balance) = abi.decode(dataBytes, (uint256));
        (OrallyStructs.ReadContractMetadata memory meta) = abi.decode(metaBytes, (OrallyStructs.ReadContractMetadata));

        // balance is the balance of the user of the requested token
        // meta.chainId is the chain id of the side chain
        // meta.contractAddr is the address of the contract on the side chain
        // meta.method is the method that was called on the contract
        // meta.params is the parameters that were passed to the method

        return balance;
    }
}

This Solidity snippet demonstrates how your dApp's contract can interact with the OrallyVerifierOracle contract to verify the data received from Sybil.

Conclusion

This guide outlines the steps to effectively integrate and utilize the Sybil data feeds in your decentralized applications. By following these steps, you can enhance the functionality and reliability of your dApps with secure and verified data from multiple external sources.

OrallyVerifierOracle addresses

Mainnets

Chain	Contract Address
Ethereum	0xB28f077244021BD84C878798b712e1D9B0FBC7Da
Linea	0x45f61bAD7e29a6FB9ec307daD7B895e63Db1940B
Aurora	0x45f61bAD7e29a6FB9ec307daD7B895e63Db1940B
Base	0x6cB284120D5e4ca3Eb95b40273D99c5E15aD05Fd
Polygon	0x76d67e374391DF6363B72dA8530035Ee5f27a3Da
Arbitrum	0x6b0853c181559c83eCC0C400395F0124310E6952
Stellar (Soroban)	CC2IHRVOKCO42PPXP5TAZWE5WJGWON7SJTOEPHSQT4H7ZN4EQH724VCF
zkSync	0xeC853A8dab05306e61E58fcc155bB98207eD078B
Manta Pacific Network	0x7b348835A12aaE1fDA26E2Ce8CB9746fcf865b18

Testnets

Chain	Chain Id	Contract Address
Sepolia	11155111	0x3df7c674a27E25e41dEbDe3Fc463912FB95124CD
Zircuit	48899	0x6fcc686fD4159Cf94d34bfcbc792552168D93626
Linea	59140	0xDFB6d80A003907c3021c714F8C60f284Ee259f58
Q Testnet	35443	0xc4691e0A3d69681a8c9b6CbC62B14584D93841b6
Ultron Testnet	1230	0x51c84C7430FEE3FC07B903400F70167644b0AfDE
BSC Testnet	97	0xec4b9D8B068233F89B03f0B806C98D1b550780f6
Optimism Goerli Testnet	420	0xCFf00E5f685cCE94Dfc6d1a18200c764f9BCca1f
Arbitrum Goerli Testnet	421613	0xCFf00E5f685cCE94Dfc6d1a18200c764f9BCca1f
Gnosis Chiado Testnet	10200	0xCFf00E5f685cCE94Dfc6d1a18200c764f9BCca1f
Aurora Testnet	1313161555	0x447e7fd904325e5aD65c05EE84E3d6775789b9Da
Avalanche Fuji Testnet	43113	0x447e7fd904325e5aD65c05EE84E3d6775789b9Da
Bitfinity Testnet	355113	0xb0Ca868a53A55E678F35D2a78ebE27b574567385
Taiko (Alpha-3 Testnet)	167005	0xCFf00E5f685cCE94Dfc6d1a18200c764f9BCca1f

Creating a Custom Pair

Orally's Sybil provides existing price feeds and allows you to create your custom price feed pair. The process is straightforward and user-friendly:

1. Navigate to the Front-End App: Visit the Orally front-end app at Sybil dApp.

2. Initiate the Custom Pair Creation Flow: Locate and click the button on the main page to initiate the Custom pair creation flow. This will open a modal where you will input details about your custom pair.

3. Input Pair Details: Provide the necessary details for your custom pair in the modal. These will include the symbol name, the frequency of updates, and the endpoints from which to fetch the price feed for your token. Ensure that these details are accurate, as they will directly influence the behaviour and accuracy of your custom pair's price feed.

4. Authenticate with SIWE: After inputting the necessary details, authenticate yourself using SIWE (Signing with Ethereum). This step is necessary for security and accountability reasons.

5. Top Up Balance: After authentication, top up the balance with the specified token. This balance is necessary to cover the execution costs associated with your custom pair's price feed.

6. Run Your Custom Pair: After completing all the previous steps, you can run your custom pair. Congratulations—you now have your own token price feed!

Following these steps, you can create a custom price feed pair for any token you choose. Orally's Sybil's power truly shines in its versatility and adaptability, making it a highly valuable tool for all developers in the blockchain space.
